Products

Spindles

Reusable spindle

Universal spindle

The ATR spindle is universal. This means it fits all of our spacing plates. It has an ‘easy grip’ screw head, making it simple to connect to the spacing plate.  The screw is stainless steel, so no rusting. It has viewing portals, so you can readily view the position of your tile. The spindle body is ridged making it convenient to grip and turn by hand. If you’re using a cordless drill, the spindle’s ridges provide purchase for your 10mm socket bit. It is designed to work with tile thicknesses of between 6mm and 18mm.

The spindle removes cleanly and easily. Simply unscrew by hand or back them off using a cordless drill – NO force, NO kicking, NO overclicking. There’s NO risk of fragmenting tiles or leaving any unwanted obstructions behind. Clean, simple and efficient. The spindles are reuseable, so save them for your next job.

Spacing plates

ATR Tile Leveling FLOOR and UNIVERSAL spacing plate families
There are two families of spacing plates. There are the floor spacing plates and the universal spacing plates. The plate’s spacing device, which creates the gap between tiles, or the grouting space is what determines if it is a floor or a universal spacing plate.
ATR Tile Leveling 3/32in 2mm and 1/8in 3mm UNIVERSAL spacing platesATR TIle Leveling 3/32in and 1/8in FLOOR spacing platesATR Tile Leveling 2mm and 3mm UNIVERSAL spacing plates

The width of the plate’s spacing device which creates the gap between tiles, or the grouting space is what determines if it is 1/8in or 3/32in.

Floor spacing plates

floor 1/8in cross spacing plate

floor 1/8in cross
spacing plate

floor 3/32in cross spacing plate

floor 3/32in cross
spacing plate

floor 1/8in edge spacing plate

floor 1/8in edge
spacing plate

floor 3/32in edge spacing plate

floor 3/32in edge
spacing plate

floor 1/8in cross spacing plate with spindle

floor 3mm cross spacing plate with spindle

The floor spacing plate with its patented blade design is created to flex and accommodate structural movement. They have been designed exclusively for use on floors. The plates’ holes and edges purposefully allow penetration of adhesive and permit contact of adhesive with the tile. The products are colour coded. All 1/8in spacing plates are green. All 3/32in spacing plates are white. We do not recommend the use of floor spacing plates on walls. Visit our guide pages for additional information.

Our products are designed to meet Australian Standard AS 3958.1 “Ceramic Tiles” *.

* When applied in accordance with the Instructions, you may use this product to meet the recommendations for tile finish and joints in Australian Standard AS 3958.1-2007 (5.4.6) “Ceramic Tiles”

Universal spacing plates

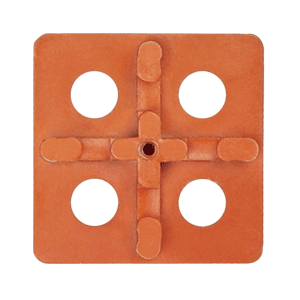

universal 1/8in cross spacing plate

universal 1/8in cross
spacing plate

universal 3/32in cross spacing plate

universal 3/32in cross
spacing plate

universal 1/8in edge spacing plate

universal 1/8in edge
spacing plate

universal 3/32in edge spacing plate

universal 3/32in edge
spacing plate

universal 3mm T spacing plates

universal 1/8in T
spacing plate

universal 2mm T spacing plate

universal 3/32in T
spacing plate

universal 2mm T spacing plate with spindle

universal 3/32in T spacing plate with spindle

The robust nature of the universal spacing plate makes it the heavy lifter of the ATR Leveling System product range. The spacing device of these plates will not flex, so it can support the weight of tiles, and resist the forces of gravity when used on vertical surfaces such as walls. Being universal it can be used on walls and floors.

The plates’ holes and edges, like the floor spacing plate, purposefully allow penetration of adhesive and permit contact of adhesive with the tile. In addition, the innovative plate design permits greater depth of grout over the spacing plate.

The universal range also includes the T spacing plate. T spacing plates were created to deal with non-grid tile patterns. These would include brickwork, herringbone, and random roll patterns. In fact, many different offset tile patterns can be succesfully installed because of the T spacing plate.

The products are colour coded. All 1/8in spacing plates are orange. All 3/32in spacing plates are blue.
The universal spacing plates, because of their versatility, are a favourite amongst many professional installers.

Look underneath

Solid and impenetrable base of all spacing plates

Solid and impenetrable base of all spacing plates

Turn the spacing plate over and look underneath. IMPRESSIVE!

The base of all ATR Tile Leveling spacing plates is solid. The solid base is designed to halt the spindle and prevent any possibility of the spindle breaching the underside of the plate. The spacing plate design protects membranes or any other surface linings. Using the ATR Tile leveling system with confidence in wet or dry areas!

Socket bit

ATR's very own Socket bit

10mm socket bit

This ATR product makes tiling life just that little bit easier.

The socket bit is guaranteed to securely fit the ATR Leveling spindle. The ATR socket bit has a longer shaft than most standard socket bits, so it can readily accommodate movement of the spindle body up and down the spindle screw.

Attach the socket bit to your drill, and you can adjust the spindle quickly and easily. Removing the spindle from your tile installation when the tile adhesive is dry is also a simple process. To get the best result using a cordless drill, visit our guide page on this topic.

Become a better time manager, and a smarter tile installer with the assistance of the ATR socket bit.
